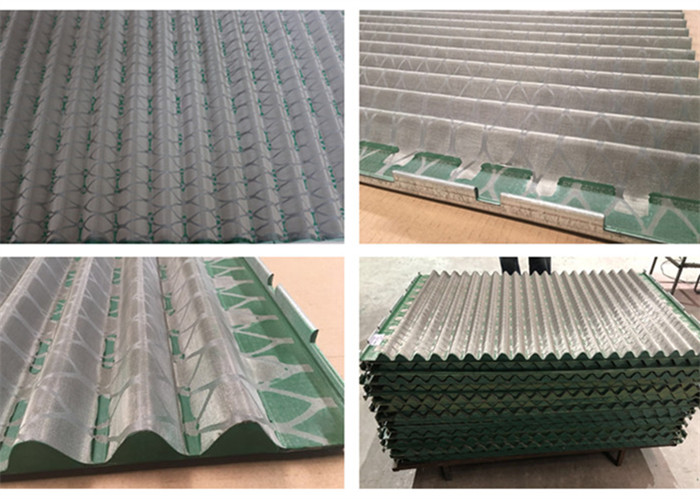

wave & flat panel shaker screen for drilling 2000 equipment
Description
We supply 2000 wave typed Sand Vibrating Screen for solids control
equipment. Waved shale shaker screens fit all Vibrating shakers,
allowing the most efficient use of existing equipment.
Just by switching to Waved and Waved Plus screens, large cost
savings and improvements in shaker performance can be achieved.
Vibrating screens are designed to maximize solids removal
capabilities while significantly reducing costs associated with
drilling fluid and disposal. Utilizing Vibrating screens will lower
the percentage of drilled solids in the mud system. Less dilution
will be required, decreasing both total drilling fluid requirements
and disposal costs. In addition, cleaner drilling fluid will
decrease down hole problems which can adversely affect drilling
time. All the benefits of clean drilling fluid lead to one end
result: Lower Drilling Cost.
-2000 series screen |
Mesh | API20---API450 |
Dimension | Length:1053mm (41 1/2”) |
Width: 697mm (27 2/5”) |
Weight | Flat: 4.2kg (9.24lb) |
Waved: 5.8kg (12.76lb) |
Screen layer | 2 or 3 Layers |
Wire mesh material | S.S304 ,S.S316 (Customizable) |
Frame material | Carbon steel |
Main Features
1) Simple structure in linear type ,easy in installation.
2) Strict control of raw materials, quality assurance.
3) Long working life.
4) Advanced production equipment. Semi-mechanized, semi-manual
production
5) Special production technology, strong and durable products.
Details

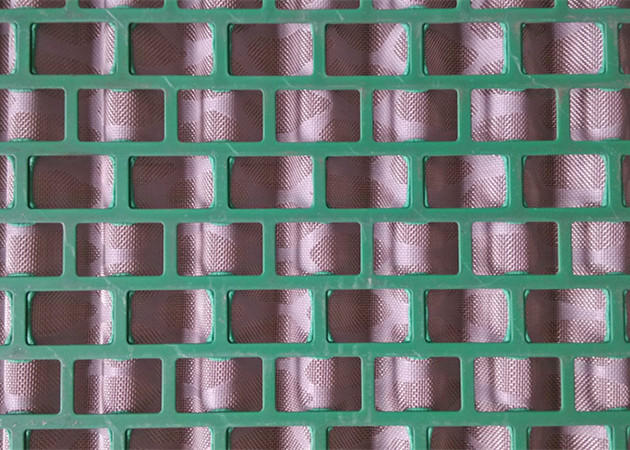

Mesh Parts
Name: 304/316 Stainless Steel Wire Mesh
Brand: Hengyun
Original: China
The Sieving Mesh parts adopt high quality 304/316 stainless steel wire mesh with good strength and wear properties.
Frame Parts
Material: polyurethane material,
Feature: High intensity, portability, shock resistence, corrosion
resistence.
Package and Delivery
1 pc/carton, 40pcs/wooden case for Oil Shale Shaker Screen, or
according to your requirement.
Services
1. We have our own workshop to produce all the Semi-finished raw
materials, including SS woven mesh and the frames, THIS WILL REDUCE YOUR COST AT LEAST 10%.
2. We have 30 years experience in manufacturing and serving this products, meanwhile, we have cooperated with PetrolChina for almost 20 years with the title of high-quality supplier which means
SERVING YOU STABLE QUALITY ALL THE TIME.
3. We developed the machines ourselves to the third generation,
ahead of other factories, we can provide 300+ pcs composite frame screens each day, WE CAN ASSURE YOUR ORDER WILL BE FINISHED IN THE SHORTEST TIME.
4.We also provide Stainless Steel Wire Mesh and Composite Frame, If you interest, welcome to take a sample to have a test.
