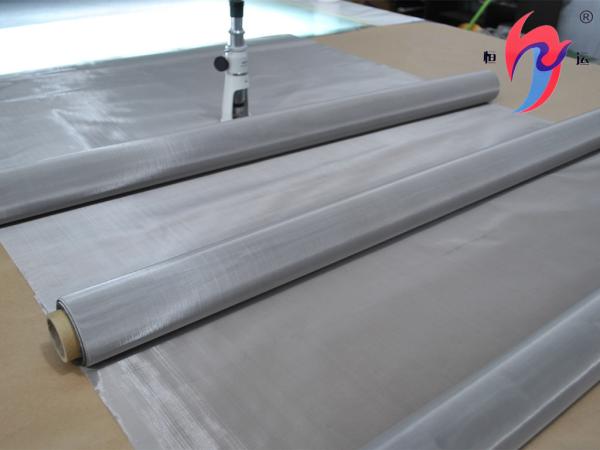

    50 100 200 Micron 304 316L Stainless Steel Oil Filter Mesh Screen Plain Weave

    Ask Lasest Price
    Brand Name : GUANGMING
    Model Number : GMS
    Certification : ISO9001
    Price : USD3.8 per SM
    Payment Terms : Western Union
    Supply Ability : 2000SM PER DAY
    • Product Details
    • Company Profile

    50 100 200 Micron 304 316L Stainless Steel Oil Filter Mesh Screen Plain Weave




    plain weave 50 100 200 micron 304 316L stainless steel oil filter mesh screen




    material

    common material:stainelss steel 304 316 904L 2205 2207 430 310 317 309 etc.

    304L 316L

    special material:pure nickel wire, Ni-cr wire, monel, inconel wire etc.
    wire diameter0.023-2.8mm
    weaving type

    plain weave, twill weave and dutch weave, bamboo weave

    Hollander weave etc.

    mesh counts1-2300meshes
    micron size500 400 300 200 100 80 70 25 micron
    techniquewoven wire mesh
    mesh rolls size1x30m 2x30m 1.524x30m 0.914x30m etc.
    samplefree and avaliable
    surfaceflat and bright

    Feature of the stainless steel wire mesh

    • Corrosion resistance.
    • Anti-acid and alkali resistance
    • Anti-high temperture.
    • Good filter performance.
    • Long using life

    Application of the stainelss steel wire mesh

    • In acid, alkali environment conditions sieving and filtering.
    • Petroleum industry as mud mesh,.
    • Chemical fiber industry as screen mesh.
    • Plating industry as acid cleaning mesh.



    Stainless Steel Wire Mesh
    Mesh/InchDiameter
    (mm)
    Aperture
    (mm)
    2MESH1.810.90
    3MESH1.66.866
    4MESH1.25.15
    5MESH0.914.17
    6MESH0.803.433
    8MESH0.602.575
    10MESH0.551.990
    12MESH0.501.616
    14MESH0.451.362
    16MESH0.401.188
    18MESH0.351.061
    20MESH0.300.970
    26MESH0.280.696
    30MESH0.250.597
    40MESH0.210.425
    50MESH0.190.318
    60MESH0.150.273
    70MESH0.140.223
    80MESH0.120.198
    90MESH0.110.172
    100MESH0.100.154
    120MESH0.080.132
    140MESH0.070.111
    150MESH0.060.109
    160MESH0.060.099
    180MESH0.0530.088
    200MESH0.0530.074
    250MESH0.040.062
    300MESH0.0350.050
    325MESH0.030.048
    350MESH0.030.043
    400MESH0.0250.0385
    500MESH0.0250.0258
    635MESH0.0200.020
    Width 0.4m-8m



    GUANGMING METAL PRODUCTS CO., LTD strives for the existence by qualiy,for development by reputation. Our company has high quality products,best prices and reliable after -sale services. On the basis of mutually beneficial and friendly cooperation. We really hope to establish good business relationship and create a better future with old and new customers at home and abroad .
